The Cyclemaster™ Bollard is a highly visible cycle route marking bollard for displaying signs for cycle lane users. The bollard is double-sided to offer a large sign area on the front and rear so directions are visible from both directions.

You may also be interested in...

Ensign™ Bollard
Glenwood™ 150 Post
Glenwood™ 150 Post & Express Delivery

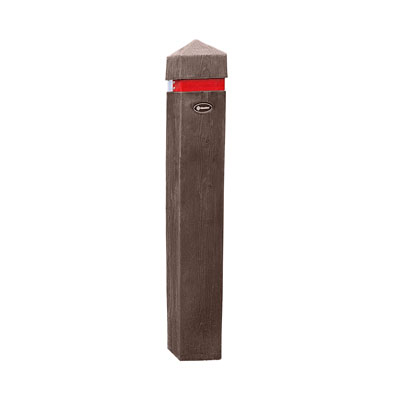

Glenwood™ 170 Post
Glenwood™ 170 Post & Express Delivery
Glenwood™ 170 Signhead Post
Infomaster Bollard with Electric Car Charging Sign
Infomaster™ Bollard
Mini-Ensign™ Bollard
£193.84
excluding VAT
£232.61 inc. VAT
£12.50 + VAT delivery (orders under £250)*
£15.00 delivery incl. VAT (orders under £300 incl. VAT)*
 The Numbered Cycle Route Personalised graphic Ref. 2602.2 is available for the front and rear of the Cyclemaster™ Bollard. Please contact us to request this graphic.
Made in Britain
 There are required options for this product. Please review your selections. Required options are marked as red.
 Oops. There seems to be a problem. Please refresh your browser.
Quantity:
Bollard Colour:
Bollard Base Options:
  What is this? Bollard Base Options
Bollard Material:
Bolt-Down Fixing Options:
  What is this? Bolt-Down Fixing Options
Reflective Kits:
  What is this? Reflective Kits
Top Front Sign Face:
  What is this? Top Front Sign Face
Top Rear Sign Face:
  What is this? Top Rear Sign Face
Middle Front Sign Face:
  What is this? Middle Front Sign Face
Middle Rear Sign Face:
  What is this? Middle Rear Sign Face
Bottom Front Sign Face:
  What is this? Bottom Front Sign Face
Bottom Rear Sign Face:
  What is this? Bottom Rear Sign Face

The Cyclemaster™ Bollard is a sign-carrying bollard with a slim design so that it can be situated in narrow spaces such as pavements, segregated cycle islands or bolted into a concrete foundation. Available in a choice of rigid Durapol® material or rebound Impactapol® material, it can be used where the route is away from the carriageway.

Ideal for the use at junctions, crossing points and on contraflow cycle lanes as the bollard is double-sided to offer a large sign area on the front and rear so directions are visible from both directions. The Cyclemaster™ bollard can display up to 6 sign faces including 150mm roundels or 125 x 210mm cycle route information signs.

The sign area features large fluorescent yellow retroreflective panels which are recessed to protect the retroreflective panel and signs from vandalism and to minimise damage. Optional rear and side retroreflective panels are also available to increase visibility from all angles.

This product is fully recyclable at the end of its life providing any stickers or graphics have been removed.

Design Features
  • Aura retroreflective panels provide high visibility in daylight conditions and under headlights at night.
  • Front and two side reflectors are included as standard but additional side and rear reflectors are available for increased visibility. What is this?
  • All reflective areas are recessed to reduce vandalism, provide weather protection and reduce damage when impacted.
  • The bollard is available as rebound Impactapol material or rigid Durapol material.
  • A wide range of standard vandal-resistant sign faces are available. Whats is this?
  • Choice of fixing options available.
  • Socket mounting option allows damaged bollards to be removed and reinstated into the socket quickly using the simple key operated lock system.
  • Both materials offer long service life and are easy to maintain.
  • Double-sided to offer a large sign area on the front and rear (up to 3 signs per side) What is this?
Colours
Colours: Black, White.
Product Options
  • Fixing Options What is this?
    • Socket Fixing
    • Below Ground Extended Base
    • Bolt-down Fixing
    • Bolt-Down Fixing with optional adjustable depth concrete in anchors
    • Bolt-Down with fixed depth concrete in anchors
  • Choice of graphic options Whats is this?
  • The Numbered Cycle Route Personalised graphic Ref. 2602.2 is available for both sides of the Cyclemaster Bollard. Please contact us to request this graphic. What is this? Personalised graphic
Materials
Bollard: Rebound Impactapol Material or rigid Durapol Material. What is this? Durapol or Impactapol Materials
Socket: Durapol Material. What is this? Durapol Material
All retroreflective materials meet the requirements in table NA1 of BS EN 12899-1:2007 Fixed Vertical Road Signs.
Black contains a minimum of 15% recycled material (Durapol version only).
Dimensions
Height above ground: 1000mm
Width: 216mm
Socket depth below ground: 306mm
Extended base depth below ground: 256mm
Bolt-down fixing depth: 75mm
Adjustable depth concrete-in anchors: Maximum depth: 320mm
Fixed depth concrete-in anchors maximum depth: 250mm
